The Vortex86 SoC Series are 32-bit x86-architecture microprocessors compatible with Windows, Linux, and the most popular 32-bit Real-Time Operating Systems. The CPU clock ranges from a single-core 300MHz to dual-core 1GHz and also integrates the L1 cache and L2 cache. They support Built-in ISA, PCI, PCIe, UART, IDE/SATA, I2C, SPI, CAN, GPIO, USB …etc., and most of the legacy I/O interface into one single BGA package.
Benchmark & Power Consumption index
| Processor | DM&P 32-bit x86 Vortex86DX3 Dual-core 1.0GHz SoC |
|---|---|
| BIOS | AMI BIOS |
| 記憶體 | 1GB/2GB DDR3-1600MHz onboard |
| VGA | Integrated Graphics Chip/D-Sub 15-pin (MAX. 1920 x 1080 pixels) |
| Ethernet | Realtek 8111F GbE x2/RDC R6040 10/100 Mbps LAN x1 (RJ-45 connector, Built-in PXE diskless boot) |
| USB | USB V2.0 up to 4 ports |
| HD Audio | Realtek ALC262VD Line-out or Mic-in & Line-out |
| SD card slot | SD Slot x1 (SD, SDHC)/Internal SD (Optional) |
| SATA | SATA Gen1 x1, 7-pin internal (Support 2.5 inch SATA HDD) |
| mPCIe | Standard Mini PCIe x1 |
| GPIO | 8-bit GPIO D-Sub 9-pin connector x2 |
| Auto Power On | 支持 |
| Power requirement | DC +8V~+24V |
| 尺寸 | 115 x 115 x 35mm/DIN Rail Support (Optional) |
| Net Weight | 510g |
| Operation Temperature | 0~60℃/-20~+70℃ |
| 認證 | CE, FCC, VCCI |
| OS Support | Windows 7, WES7, Windows XP, XPe, CE6.0, Compact 7 and Linux |

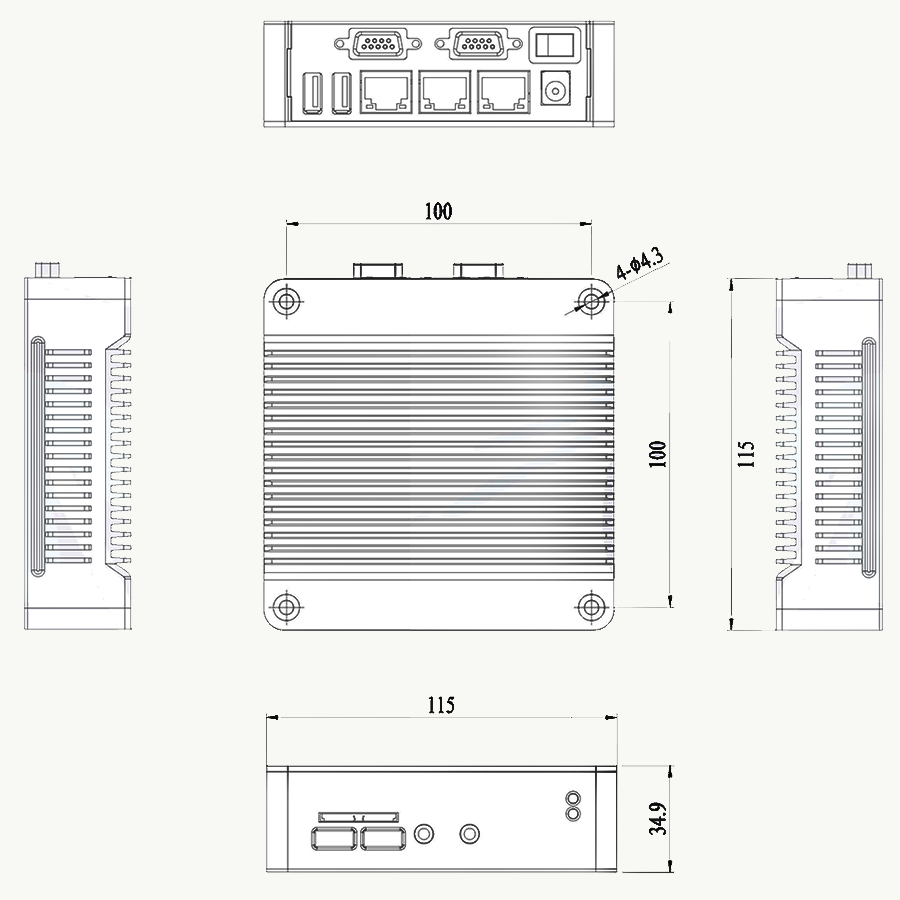

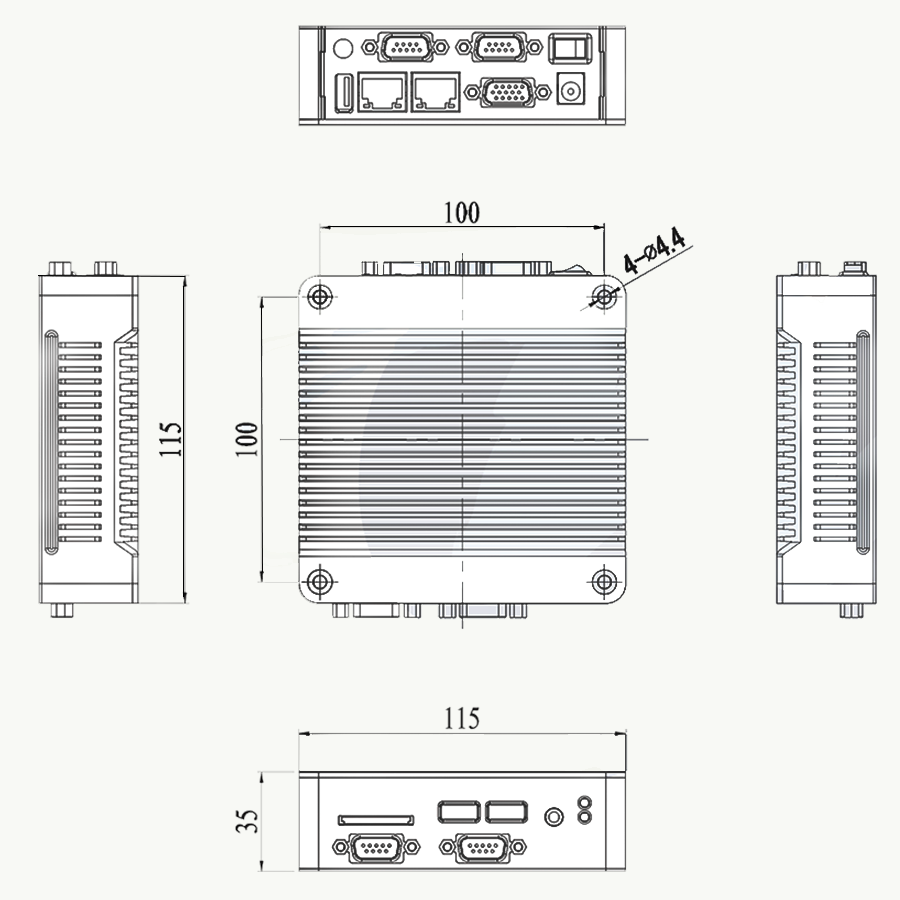

Dimensions unit: mm
