86HMI::ArcBar

[Visualization widgets]

Object Functions

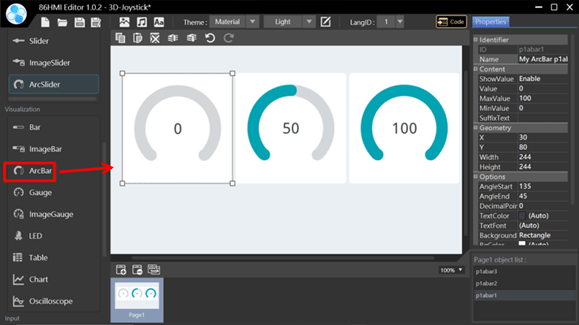

ArcBar object.

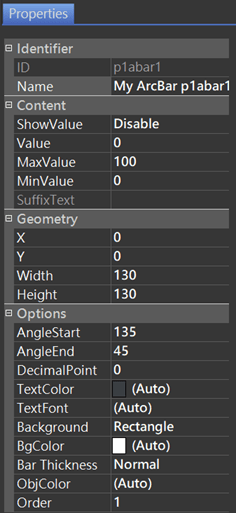

ArcBar Properties.

Identifier:

• ID: Unique number that identifies the object.
• Name: User-definable name for the object. It can be used with 86HMI API.

Content:

• ShowValue: Displayed value or not.
• Value: Initial value of the object.
• MaxValue: Maximum value can be positive or negative but must not be less than the minimum value.
• MinValue: Minimum value can be positive or negative but must not be bigger than the maximum value.
• SuffixText: Suffix text after the value.

Geometry:

• X: Object X coordinate.
• Y: Object Y coordinate.
• Width: Object width.
• Height: Object height.

Options:

• AngleStart: Starting angle of ArcBar.
• AngleEnd: Ending angle of ArcBar.

• TextColor: Text color can be chosen through the color palette or by directly inputting the color code.
• TextFont: Choose from 6 default font styles. For font configuration instructions, please refer to Theme Management.
• Background: Object background type, there are three types:
  1. Rectangle
  2. Circle
  3. Hidden
• BgColor: Background color can be chosen through the color palette or by directly inputting the color code.

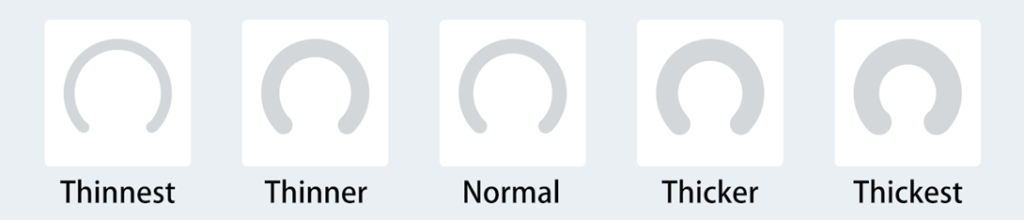

• Bar Thickness: Adjustable thickness of ArcBar.

• ObjColor: Choose from 4 themed colors. For font configuration instructions, please refer to Theme Management.
• Order: Object order. It can adjust the object order by up/down, which can be viewed on the Object List.

API Functions

setArcBarValue()

Description

Set ArcBar value.

Syntax

void setArcBarValue(lv_obj_t* id, double value);
void setArcBarValue(char* name, double value);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.
• [in] value
  Set ArcBar value.

Return

None.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // ...
  Hmi.setArcBarValue(p1abar1, 100);
}

void loop() {
  // ...
}

getArcBarValue()

Description

Get ArcBar value.

Syntax

double getArcBarValue(lv_obj_t* id);
double getArcBarValue(char* name);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

ArcBar value.

Example

#include "myhmi.h"

void setup() {
  Serial.begin(115200);
  while (!Serial);

  Hmi.begin();
  // ...
  Hmi.setArcBarValue(p1abar1, 100);
  Serial.print("p1abar1 value: ");
  Serial.println(Hmi.getArcBarValue(p1abar1));
}

void loop() {
  // ...
}

Please see the 86HMI Editor User Manual for more instructions on 86HMI widgets and API usage.
