86HMI::Checkbox

[Control widgets]

Object Functions

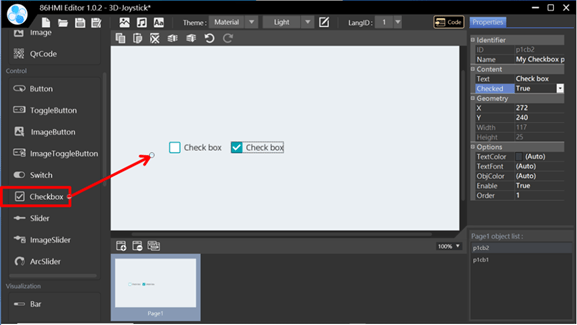

Checkbox object.

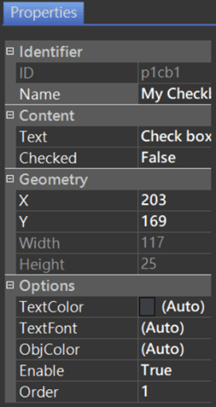

Checkbox Properties.

Identifier:

• ID: Unique number that identifies the object.
• Name: User-definable name for the object. It can be used with 86HMI API.

Content:

• Text: Checkbox content.
• Checked: Default checkbox state.

Geometry:

• X: Object X coordinate.
• Y: Object Y coordinate.
• Width: Object width. It cannot be adjusted by default.
• Height: Object height. It cannot be adjusted by default.

Options:

• TextColor: Text color can be chosen through the color palette or by directly inputting the color code.
• TextFont: Choose from 6 default font styles. For font configuration instructions, please refer to Theme Management.
• ObjColor: Choose from 4 themed colors. For font configuration instructions, please refer to Theme Management.
• Enable: Select the default state of the object, enable or disable.
• Order: Object order. It can adjust the object order by up/down, which can be viewed on the Object List.

API Functions

setCheckboxState()

Description

Set Checkbox state.

Syntax

void setCheckboxState(lv_obj_t* id, bool checked);
void setCheckboxState(char* name, bool checked);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.
• [in] checked
  Bool. Checkbox state, Checked or Unchecked.

Return

None.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // put your setup code here, to run once:
  Hmi.setCheckboxState(p1cb1, true);
}

void loop() {
  // ...
}

getCheckboxState()

Description

Get Checkbox state.

Syntax

bool getCheckboxState(lv_obj_t* id);
bool getCheckboxState(char* name);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

Checkbox state.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // put your setup code here, to run once:
}

void loop() {
  if (Hmi.getCheckboxState(p1cb1)) {
    // do something.
  }
}

checkboxChecked()

The following Event Functions are written between BEGIN_HMI_EVENT_PROC and END_HMI_EVENT_PROC.

Description

Determine Checkbox is checked.

Syntax

bool checkboxChecked(lv_obj_t* id);
bool checkboxChecked(char* name);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

Bool. Determine Checkbox is checked.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // put your setup code here, to run once:
}

void loop() {
  BEGIN_HMI_EVENT_PROC
  {
    if (Hmi.checkboxChecked(p1cb1))
    {
      // do something.
    }
    if (Hmi.checkboxUnchecked(p1cb1))
    {
      // do something.
    }
  }
  END_HMI_EVENT_PROC
}

checkboxUnchecked()

The following Event Functions are written between BEGIN_HMI_EVENT_PROC and END_HMI_EVENT_PROC.

Description

Determine Checkbox is unchecked.

Syntax

bool checkboxUnchecked(lv_obj_t* id);
bool checkboxUnchecked(char* name);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

Bool. Determine Checkbox is unchecked.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // put your setup code here, to run once:
}

void loop() {
  BEGIN_HMI_EVENT_PROC
  {
    if (Hmi.checkboxChecked(p1cb1))
    {
      // do something.
    }
    if (Hmi.checkboxUnchecked(p1cb1))
    {
      // do something.
    }
  }
  END_HMI_EVENT_PROC
}

Please see the 86HMI Editor User Manual for more instructions on 86HMI widgets and API usage.
