86HMI::FileBrowser

[Menu widgets]

Object Functions

FileBrowser Object.

FileBrowser is a component used to select files.
Through the API, you can set the disk, and it will display and read the selected file path for subsequent processing by the user.

Note:

• FileBrowser only supports English file names
• The maximum length of the path is 1024 characters.
• Display up to 128 files/folders.

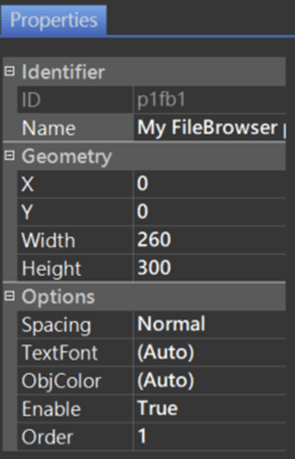

FileBrowser Properties.

Identifier:

• ID: Unique number that identifies the object.
• Name: User-definable name for the object. It can be used with 86HMI API.

Geometry:

• X: Object X coordinate.
• Y: Object Y coordinate.
• Width: Object width.
• Height: Object height.

Options:

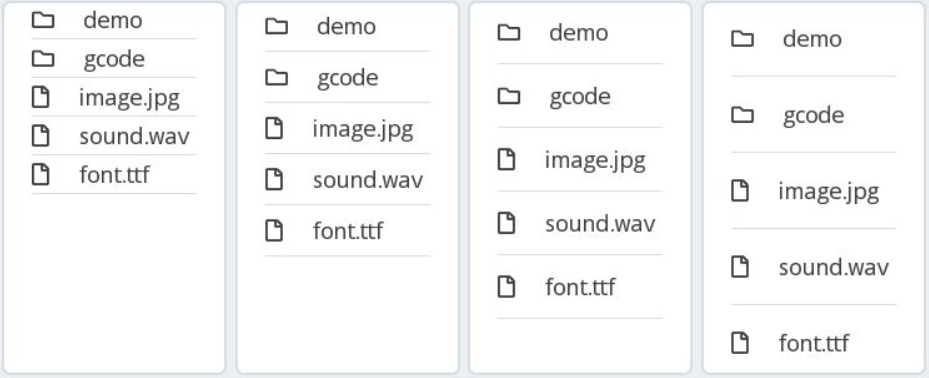

• Spacing: The line spacing between each option is:
  1. Smallest
  2. Smaller
  3. Normal
  4. Larger

• TextFont: Choose from 6 default font styles. For font configuration instructions, please refer to Theme Management.
• ObjColor: Choose from 4 themed colors. For font configuration instructions, please refer to Theme Management.
• Enable: Select the default state of the object, enable or disable.
• Order: Object order. It can adjust the object order by up/down, which can be viewed on the Object List.

API Functions

setFileBrowserFilter()

Description

Set a filter of FileBrowser object.
Here are the rules:

• ? matches exactly one occurrence of any character.
• * matches any occurrence of any character (including zero occurrences).

Examples:

• *.txt will match any filename ending with .txt.
• ???.txt will match any file with exactly three characters in the filename ending with .txt.

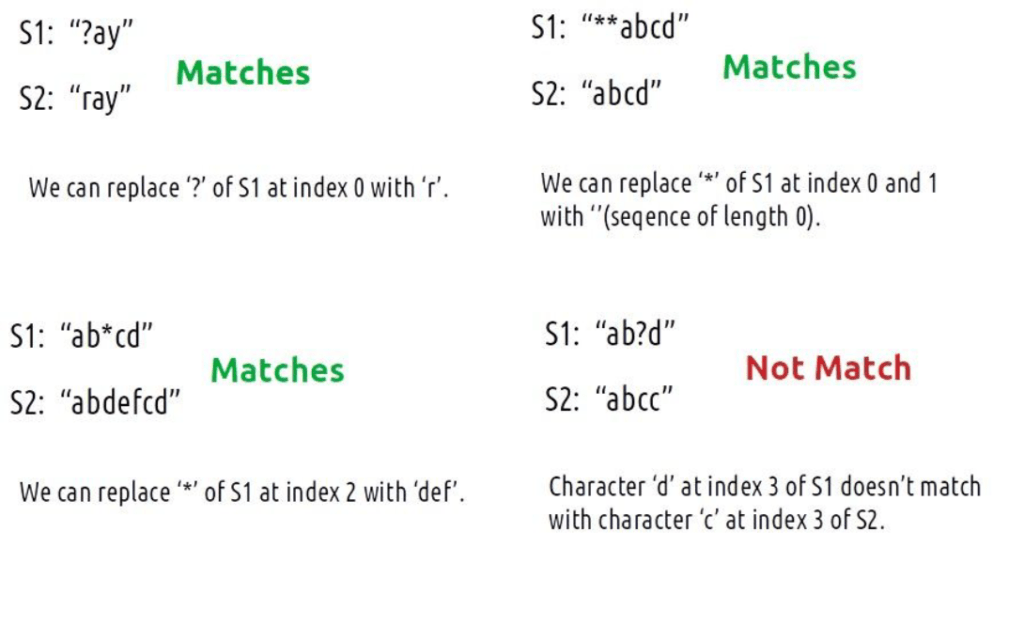

Matching wildcards:

Syntax

void setFileBrowserFilter(lv_obj_t* id, char* filter, int filterIndex);
void setFileBrowserFilter(char* name, char* filter, int filterIndex);
void setFileBrowserFilter(lv_obj_t* id, char* filter);
void setFileBrowserFilter(char* name, char* filter);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.
• [in] char* filter
  The filter content.
• [in] int filterIndex
  The filter index.

Return

None.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // ...
  Hmi.setFileBrowserFilter(p1fb1, "a");
}

void loop() {
  // ...
}

deleteFileBrowserFilter()

Description

Delete the filter of FileBrowser object.

Syntax

void deleteFileBrowserFilter(lv_obj_t* id, int filterIndex);
void deleteFileBrowserFilter(char* name, int filterIndex);
void deleteFileBrowserFilter(lv_obj_t* id);
void deleteFileBrowserFilter(char* name);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.
• [in] int filterIndex
  The filter index.

Return

None.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // ...
  Hmi.setFileBrowserFilter(p1fb1, "a");

  delay(1000);
  Hmi.deleteFileBrowserFilter(p1fb1);
}

void loop() {
  // ...
}

setFileBrowserDisk()

Description

Select the disk of FileBrowser object.

Syntax

void setFileBrowserDisk(lv_obj_t* id, int disk);
void setFileBrowserDisk(char* name, int disk);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.
• [in] int disk
  Select the disk.

Return

None.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // ...
  Hmi.setFileBrowserDisk(p1fb1, USBDISK);
}

void loop() {
  // HMI event
  BEGIN_HMI_EVENT_PROC
  {
    // USB
    if (Hmi.buttonClicked(p1b1))
    {
      Hmi.importToTextList(p1tl1, Hmi.getFileBrowserFilePath(p1fb1), USBDISK);
    }
    if (Hmi.buttonClicked(p1b2))
    {
      Hmi.clearTextList(p1tl1);
    }
  }
  END_HMI_EVENT_PROC
  delay(100);
}

getFileBrowserFolder()

Description

Get the folder of FileBrowser object.

Syntax

char* getFileBrowserFolder(lv_obj_t* id);
char* getFileBrowserFolder(char* name);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

The folder of FileBrowser object.

Example

#include "myhmi.h"

void setup() {
  Serial.begin(115200);
  while (!Serial);

  Hmi.begin();
  // ...
  Serial.println(Hmi.getFileBrowserFolder(p1fb1));
}

void loop() {
  // ...
}

getFileBrowserFilePath()

Description

Get the file path of FileBrowser object.

Syntax

char* getFileBrowserFilePath(lv_obj_t* id);
char* getFileBrowserFilePath(char* name);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

The file path of FileBrowser object.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // ...
  Hmi.setFileBrowserDisk(p1fb1, USBDISK);
}

void loop() {
  // HMI event
  BEGIN_HMI_EVENT_PROC
  {
    // USB
    if (Hmi.buttonClicked(p1b1))
    {
      Hmi.importToTextList(p1tl1, Hmi.getFileBrowserFilePath(p1fb1), USBDISK);
    }
    if (Hmi.buttonClicked(p1b2))
    {
      Hmi.clearTextList(p1tl1);
    }
  }
  END_HMI_EVENT_PROC
  delay(100);
}

Please see the 86HMI Editor User Manual for more instructions on 86HMI widgets and API usage.
