86HMI::Gauge

[Visualization widgets]

Object Functions

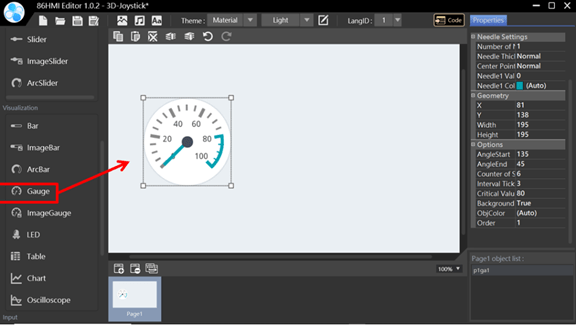

Gauge object.

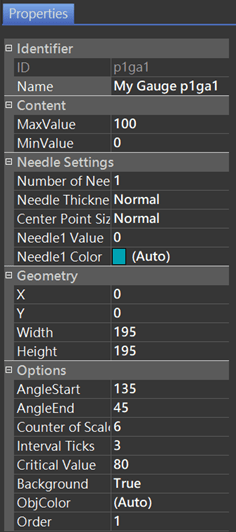

Gauge Properties.

Identifier:

• ID: Unique number that identifies the object.
• Name: User-definable name for the object. It can be used with 86HMI API.

Content:

• MaxValue: Maximum value can be positive or negative but must not be less than the minimum value.
• MinValue: Minimum value can be positive or negative but must not be bigger than the maximum value.

Needle Settings:

• Number of Needles: Needles number, up to 4.
• Needle Thickness: Needles thickness.
• Center Point Size: Center point size or no display.
• Needle 1~4 Value: Initial value of each needle.
• Needle 1~4 Color: Each needles color.

Geometry:

• X: Object X coordinate.
• Y: Object Y coordinate.
• Width: Object width.
• Height: Object height.

Options:

• AngleStart: Starting angle of Gauge.
• AngleEnd: Ending angle of Gauge.

• Counter of Scale Labels: Set the counter of scale labels, with the default being 6. Users can select from 2 to 11 by drop-down.
• Interval Ticks: Set the interval ticks divisions from 0 to 9.
• Critical Value: Alarm start value.
• Background: Gauge background (circle) displayed or not.
• ObjColor: Choose from 4 themed colors. For font configuration instructions, please refer to Theme Management.
• Order: Object order. It can adjust the object order by up/down, which can be viewed on the Object List.

API Functions

setGaugeValue()

Description

Set Gauge needle value.

Syntax

void setGaugeValue(lv_obj_t* id, int value);
void setGaugeValue(char* name, int value);
void setGaugeValue(lv_obj_t* id, int value, int needle);
void setGaugeValue(char* name, int value, int needle);

Parameters

• [in] id
  Object ID.
• [in] name
  Object Name.
• [in] value
  Set Gauge needle value.
• [in] needle
  Set Gauge needle.

Return

None.

Example

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // ...
  Hmi.setGaugeValue(p1ga1, 100, 1);
}

void loop() {
  // ...
}

Please see the 86HMI Editor User Manual for more instructions on 86HMI widgets and API usage.
