[Input widgets]
Object Functions

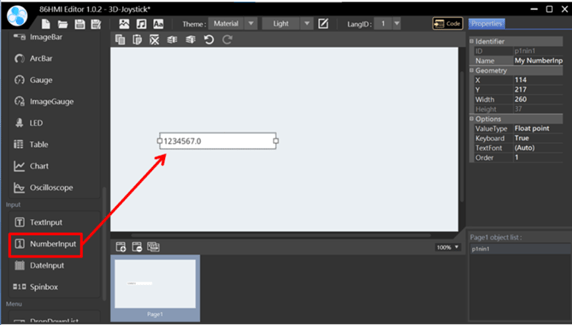

NumberInput object.
NumberInput Properties.
Identifier:
- ID: Unique number that identifies the object.
- Name: User-definable name for the object. It can be used with 86HMI API.
Geometry:
- X: Object X coordinate.
- Y: Object Y coordinate.
- Width: Object width.
- Height: Object height.
Options:
- Value Type: NumberInput value type, integer or decimal point.
- Keyboard: Set whether the virtual keyboard is displayed. The virtual keyboard appears when the user clicks the NumberInput box to enter a number.
- TextFont: Choose from 6 default font styles. For font configuration instructions, please refer to Theme Management.
- Order: Object order. It can adjust the object order by up/down, which can be viewed on the Object List.
API Functions
setNumberInputValue()
Description
Set NumberInput Value.
Syntax
void setNumberInputValue(lv_obj_t* id, double value);
void setNumberInputValue(char* name, double value);
Parameters
[in] id
Object ID.[in] name
Object Name.[in] value
Default NumberInput Value.
Return
None.
Example
#include "myhmi.h"
void setup() {
Hmi.begin();
// ...
Hmi.setNumberInputValue(p1nin1, 100);
}
void loop() {
// ...
}getNumberInputValue()
Description
Get NumberInput Value.
Syntax
double getNumberInputValue(lv_obj_t* id);
double getNumberInputValue(char* name);
Parameters
[in] id
Object ID.[in] name
Object Name.
Return
NumberInput value.
Example
#include "myhmi.h"
void setup() {
Serial.begin(115200);
while (!Serial);
Hmi.begin();
// ...
Serial.println(Hmi.getNumberInputValue(p1nin1));
}
void loop() {
// ...
}getNumberInputInteger()
Description
Get NumberInput integer value.
Syntax
int getNumberInputInteger(lv_obj_t* id);
int getNumberInputInteger(char* name);
Parameters
[in] id
Object ID.[in] name
Object Name.
Return
NumberInput integer value.
Example
#include "myhmi.h"
void setup() {
Serial.begin(115200);
while (!Serial);
Hmi.begin();
// ...
Serial.println(Hmi.getNumberInputInteger(p1nin1));
}
void loop() {
// ...
}numberInputApplied()
The following Event Functions are written between BEGIN_HMI_EVENT_PROC and END_HMI_EVENT_PROC.
Description
Determine NumberInput is applied.
Syntax
bool numberInputApplied(lv_obj_t* id);
bool numberInputApplied(char* name);
Parameters
[in] id
Object ID.[in] name
Object Name.
Return
Bool. Determine NumberInput is applied.
Example
#include "myhmi.h"
void setup() {
Hmi.begin();
// ...
}
void loop() {
BEGIN_HMI_EVENT_PROC
{
if (Hmi.numberInputApplied(p1nin1))
{
Serial.println(Hmi.getNumberInputInteger(p1nin1));
}
}
END_HMI_EVENT_PROC
}numberInputCanceled()
Description
Determine NumberInput is canceled.
Syntax
bool numberInputCanceled(lv_obj_t* id);
bool numberInputCanceled(char* name);
Parameters
[in] id
Object ID.[in] name
Object Name.
Return
Bool. Determine NumberInput is canceled.
Example
#include "myhmi.h"
void setup() {
Hmi.begin();
// ...
}
void loop() {
BEGIN_HMI_EVENT_PROC
{
if (Hmi.numberInputCanceled(p1nin1))
{
Serial.println(Hmi.getNumberInputInteger(p1nin1));
}
}
END_HMI_EVENT_PROC
}Please see the 86HMI Editor User Manual for more instructions on 86HMI widgets and API usage.
