EtherCAT Master with 7″ LCD.

  • DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz
  • EtherCAT Master Core runs on dedicated CPU
  • Hardware/Software Real-time
  • 86Duino Integrated Development Environment (IDE)
  • Up to 128 axes support for motion control
  • 7-inch TFT 800×480 Resolution LCD with Restive touchscreen
  • Internal Monitoring Hardware Information
  • Operating Temperature -20 to +70°C/-40 to +85°C (Option)
  • 3LAN/3USB/MicroUSB/VGA/MiniPCIe/Arduino Pins

Certifications:  EtherCATlogo1

Support Links:  Datasheet  |  User Manual  |  Software Download

SKU: QEC-M-070T Category: Tag:

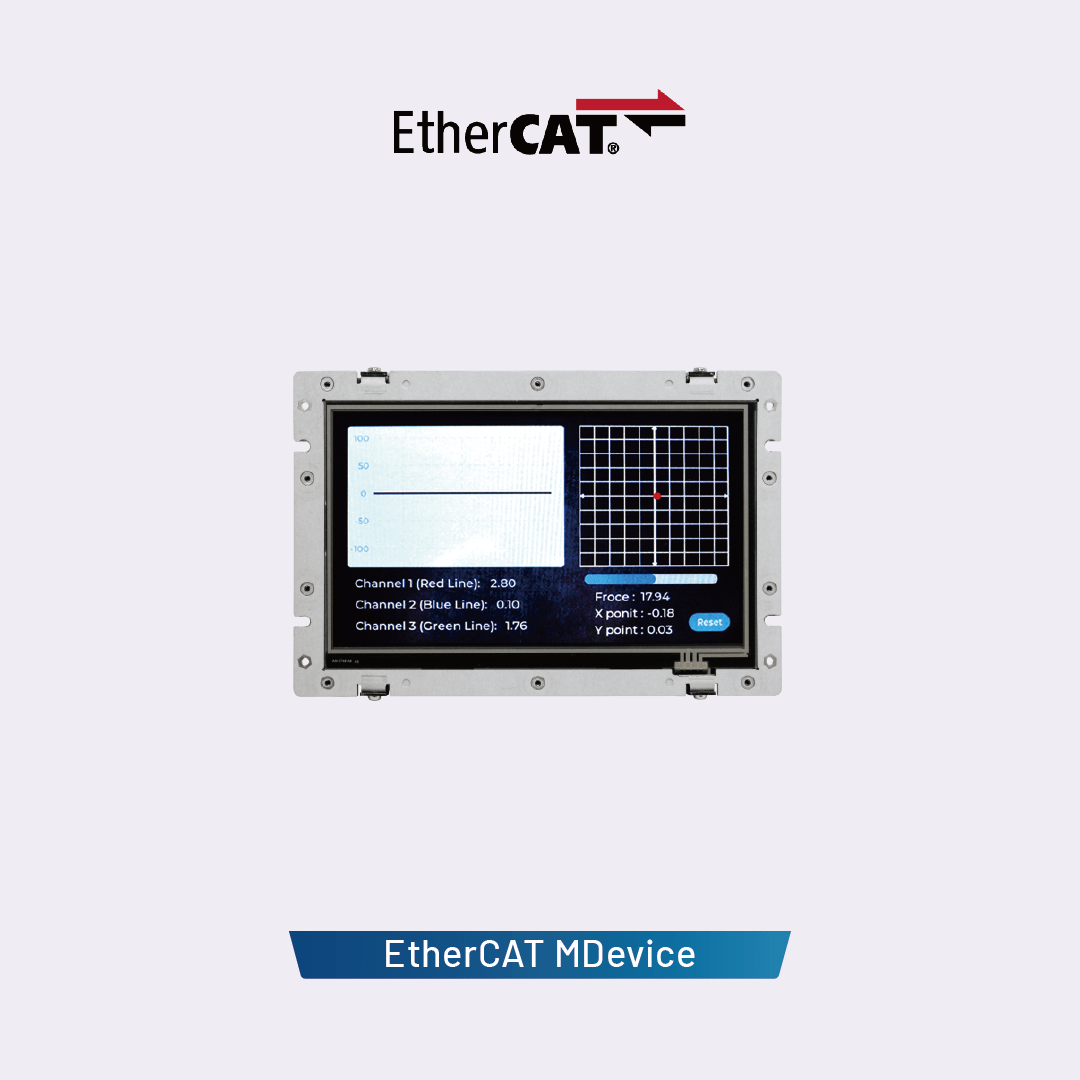

ICOP’s QEC-M-070T is an EtherCAT master with a real-time, reliable, and synchronous control equipped with a 7-inch TFT LCD. The industrial Arduino makes it an easy-to-develop, stable, and economical automation system, allowing users to develop EtherCAT with UI quickly.


The QEC master is highly compatible with third-party EtherCAT devices for communication, such as servo, I/O, etc. It supports PDO, CoE, FoE, DC, and EtherCAT cable redundancy to use other EtherCAT slaves flexibly. The QEC master has precise synchronization (min.125μs), and its 86Duino IDE provides less than 1us jitter time in the minimum cycle time; it could apply to highly synchronized and precision automatic applications, like motion control and I/O control. (Read More: EtherCAT Master’s Benchmark –QEC)

QEC-M-070T has a built-in high endurance 2GB SLC eMMC, designed to provide a stable and reliable operating system. Users can upload the developed executable files and required images or data, such as HMI images, to the QEC-M-070’s SLC via the 86Duino IDE without affecting the performance of the master system. Besides, 86Duino IDE also integrates with the LVGL library to provide an advanced and intuitive approach to user interface design on QEC-M-070T.


QEC-M-070T can also monitor hardware information on temperature, voltage, and current. These features allow users to track the system’s carbon footprint and estimate its lifespan. QEC-M-070T’s dimension is 186 x 121.05 x 31.05 mm, with its open frame design for easy integration and customization. The operating temperature is from -20°C to +70°C, with an extended option of -40 to +85°C.

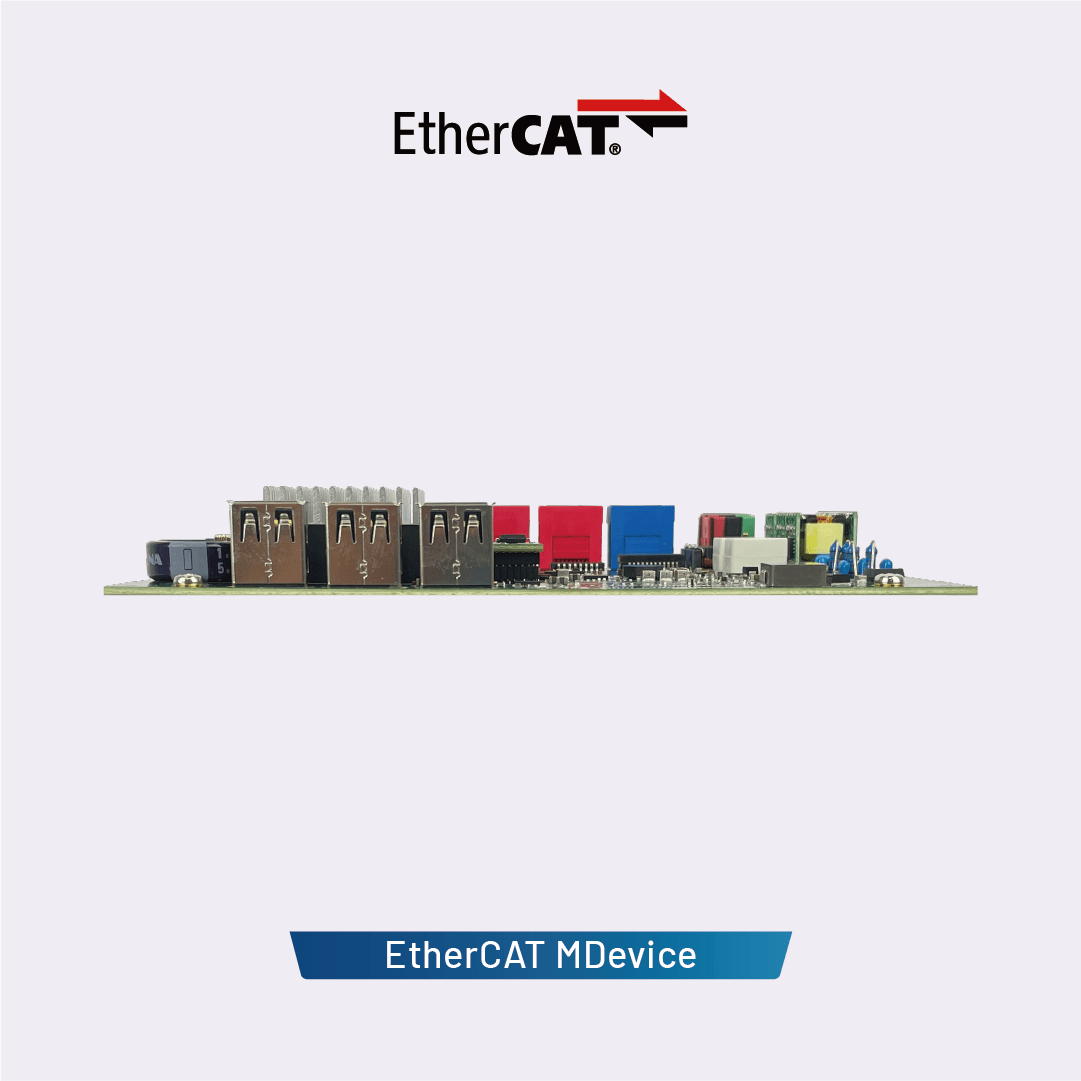

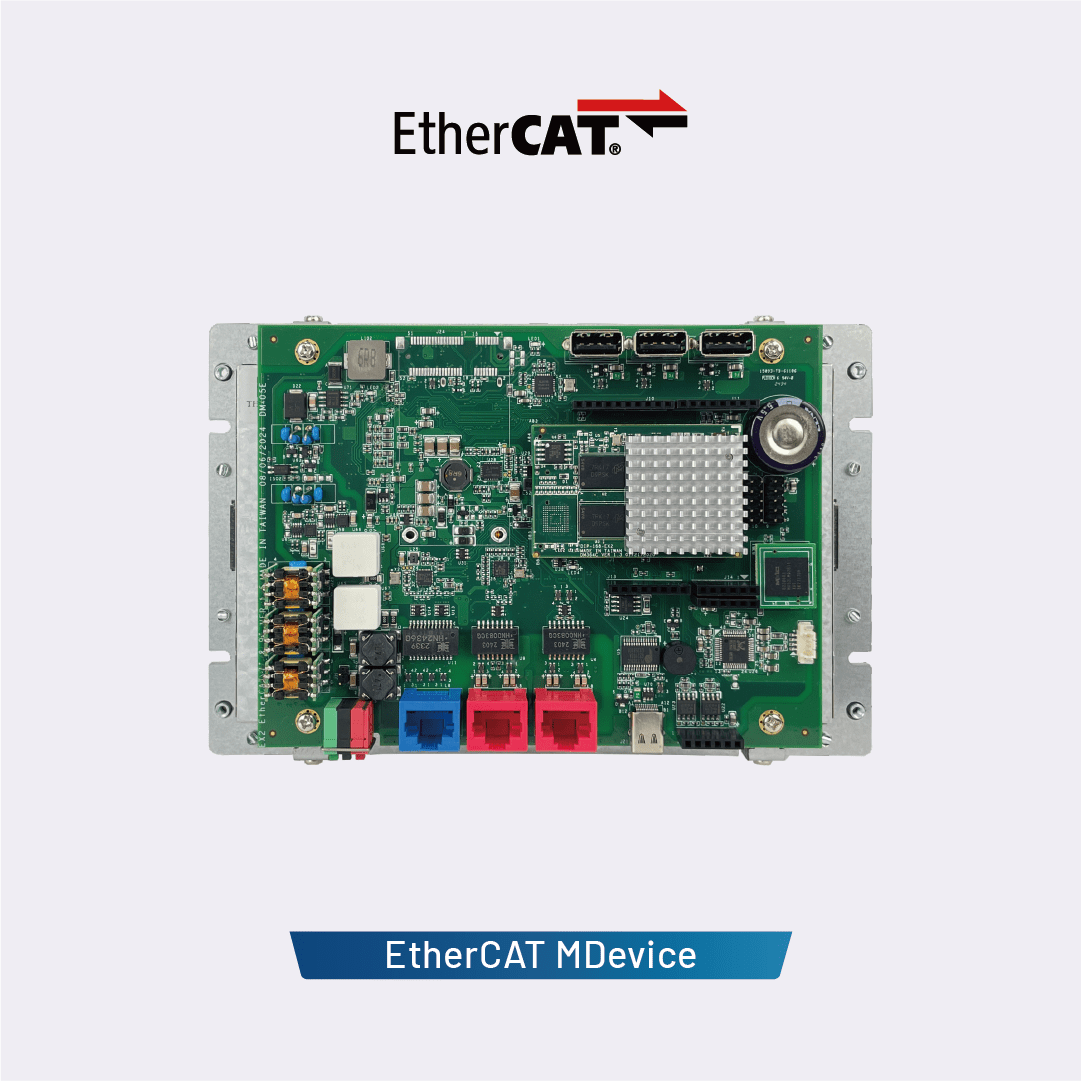

QEC-M-070T has two networks for EtherCAT Cable redundancy and one Giga LAN for external network connection. It also offers unrivaled connectivity, featuring 3 USB ports, a MicroUSB port (debug/upload only), VGA output slot, and full Arduino function Pins (GPIO, PWM, SPI, I2C, CAN, etc.); All provide an off-the-shelf API to use.

重さ 520 g
サイズ 186 × 121.05 × 31.05 mm



CPU DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz
Memory 512MB/1GB DDRIII Onboard
Storage 32MB SPI Flash/2GB SLC eMMC
LCD Display 7-inch TFT 800×480 Resolution LCD with Restive touchscreen
LAN 1Gbps Ethernet RJ45 x1
10/100Mbps Ethernet RJ45 x2 for EtherCAT
Expansion MiniPCIe x 1 with Micro SIM Card Holder
I/O Connector 2.54mm 2-pin header for Power Connector
1.25mm 4-pin wafer for Line-Out
Power DC Input/Output Connector x1
Micro USB (Type-B) x1 (Upload/Debug only)
VGA Connector (10-pin) x1
1.25mm 4-pin header for EXT I2C TFT Driver
Micro SIM Card Holder x1
MiniPCIe slot x1
USB 2.0 Host x3
RJ45 x3
Arduino Compatible Connector 2.54mm 10-pin female header for I2C0, MCM, GPIO
2.54mm 8-pin female header for MCM, GPIO, COM1 (TTL)
2.54mm 8-pin female header for Power source
2.54mm 6-pin female header for ADC/GPIO
2.54mm 6-pin female header for GPIO, VCC and GND
2.54mm 6-pin female header for CAN0 and CAN1 bus
2.54mm 10-pin header for SPI0 bus, RESET-, GPIO and I2C1
2.54mm 10-pin header for SPI1 bus, RESET-, GPIO and RS485 function (COM4)
Protocol EtherCAT (EtherCAT Master Functions: PDO, CoE, DC, Cable-redundancy, etc.)
Ethernet Standard IEEE 802.3
Control Cycle Time 125 µs (min.)
Power Connector 6-pin Power Input /Output
Power Requirement +19 to +50VDC Power Input (Typ. +24VDC)
Power Consumption 8W
Operating Temperature -20 to +70°C/-40 to +85°C (Option)
Dimension 186 x 121.05 x 31.05 mm
Weight 520 g
Internal Monitoring Temperature, Voltage, Current
Software Support 86Duino Coding IDE 500+
(The environment is written in Java and based on Arduino IDE, Processing, DJGPP, and other open source software)

Ordering Information


 Ordering Part Number:

  • QEC-M-070T: Vortex86EX2 Processor 533MHz-based EtherCAT Master System with 7-inch LCD
  • QEC-M-070TP: Vortex86EX2 Processor 533MHz-based EtherCAT Master System with 7-inch LCD/PoE
  • QEC-M-070TP-G4-X-C: Vortex86EX2 Processor 533MHz-based EtherCAT Master System with 7-inch LCD/PoE/1G DDRIII Memory/4G eMMC Storage/Wide Temp./Coating
