86HMI::List

[Menu widgets]

Object Functions

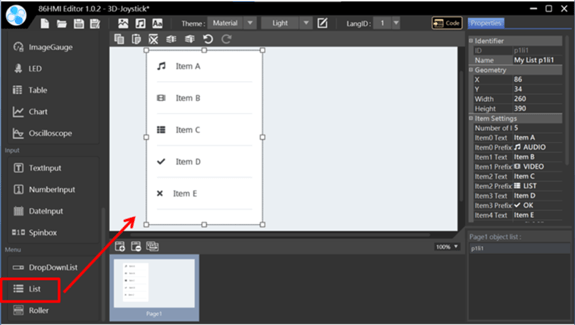

List object.

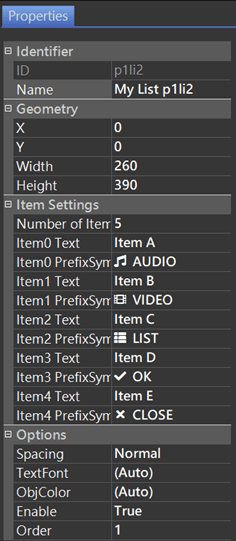

List Properties.

Identifier:

• ID: Unique number that identifies the object.
• Name: User-definable name for the object. It can be used with 86HMI API.

Geometry:

• X: Object X coordinate.
• Y: Object Y coordinate.
• Width: Object width.
• Height: Object height.

Item Settings:

• Number of Items: Number of items, from 2 to 16, default is 5.
• Item1~n Text: Each item name.
• Item1~n PrefixSymbol: Each item prefix symbol.

Options:

• Spacing: Item space.
• TextFont: Choose from 6 default font styles. For font configuration instructions, please refer to Theme Management.
• ObjColor: Choose from 4 themed colors. For font configuration instructions, please refer to Theme Management.
• Enable: Select the default state of the object, enable or disable.
• Order: Object order. It can adjust the object order by up/down, which can be viewed on the Object List.

API Functions

getListSelectedItem()

描述

Get List selected item number.

語法

int getListSelectedItem(lv_obj_t* id);
int getListSelectedItem(char *name);

參數

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

List the selected item number.

範例

#include "myhmi.h"

void setup() {
  Serial.begin(115200);
  while (!Serial);

  Hmi.begin();
  Serial.println(Hmi.getListSelectedItem(p1li1));
}

void loop() {
  // ...
}

listItemSelected()

The following Event Functions are written between BEGIN_HMI_EVENT_PROC 以及 END_HMI_EVENT_PROC.

描述

Determine List’s Item is selected.

語法

bool listItemSelected(lv_obj_t* id);
bool listItemSelected(char* name);

參數

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

Bool. Determine List’s Item is selected.

範例

#include "myhmi.h"

void setup() {
  Serial.begin(115200);
  while (!Serial);

  Hmi.begin();
  // ...
}

void loop() {
  // ...
  BEGIN_HMI_EVENT_PROC
  {
    if (Hmi.listItemSelected(p1li1))
    {
      Serial.println(Hmi.getListSelectedItem(p1li1));
    }
  }
  END_HMI_EVENT_PROC
}

Please see the 86HMI 編輯器使用手冊 for more instructions on 86HMI widgets and API usage.
