86HMI::Slider

[Control widgets]

Object Functions

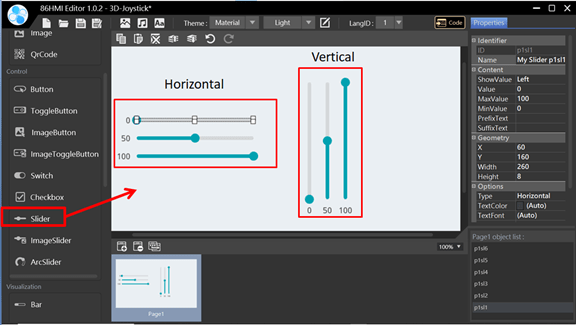

Slider object. It can control the slider movement and the event change and can be used to adjust the numerical change function element.

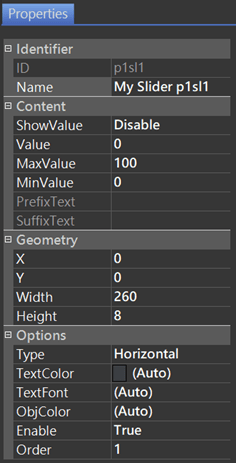

Slider Properties.

Identifier:

• ID: Unique number that identifies the object.
• Name: User-definable name for the object. It can be used with 86HMI API.

Content:

• ShowValue: Displayed value position, with options as Disable, Top, Bottom, Left, Right, and Following.
• Value: Initial value of the object.
• MaxValue: Maximum value can be positive or negative but must not be less than the minimum value.
• MinValue: Minimum value can be positive or negative but must not be bigger than the maximum value.
• PrefixText: Prefix text in front of the value.
• SuffixText: Suffix text after the value.

Geometry:

• X: Object X coordinate.
• Y: Object Y coordinate.
• Width: Object width. It cannot be adjusted by default.
• Height: Object height. It cannot be adjusted by default.

Options:

• Type: Slider type, Horizontal or Vertical.
• TextColor: Text color can be chosen through the color palette or by directly inputting the color code.
• TextFont: Choose from 6 default font styles. For font configuration instructions, please refer to Theme Management.
• ObjColor: Choose from 4 themed colors. For font configuration instructions, please refer to Theme Management.
• Enable: Select the default state of the object, enable or disable.
• Order: Object order. It can adjust the object order by up/down, which can be viewed on the Object List.

API Functions

setSliderValue()

描述

Set Slider value.

語法

void setSliderValue(lv_obj_t* id, int value);
void setSliderValue(char* name, int value);

參數

• [in] id
  Object ID.
• [in] name
  Object Name.
• [in] value
  Set Slider value.

Return

無

範例

#include "myhmi.h"

void setup() {
  Hmi.begin();
  // put your setup code here, to run once:
  Hmi.setSliderValue(p1sl1, 50);
}

void loop() {
  // ..
}

getSliderValue()

描述

Get Slider value.

語法

int getSliderValue(lv_obj_t* id);
int getSliderValue(char* name);

參數

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

Slider value.

範例

#include "myhmi.h"

void setup() {
  Serial.begin(115200);
  while (!Serial);

  Hmi.begin();
}

void loop() {
  Serial.println(Hmi.getSliderValue(p1sl1));
  delay(1000);
}

sliderDragging()

The following Event Functions are written between BEGIN_HMI_EVENT_PROC 以及 END_HMI_EVENT_PROC.

描述

Determine Slider is dragging.

語法

bool sliderDragging(lv_obj_t* id);
bool sliderDragging(char* name);

參數

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

Bool. Determine Slider is dragging.

範例

#include "myhmi.h"

void setup() {
  Hmi.begin();
}

void loop() {
  BEGIN_HMI_EVENT_PROC
  {
    if (Hmi.sliderDragging(p1sl1))
    {
      // do something.
    }
  }
  END_HMI_EVENT_PROC
}

sliderDropped()

The following Event Functions are written between BEGIN_HMI_EVENT_PROC 以及 END_HMI_EVENT_PROC.

描述

Determine Slider is dropped.

語法

bool sliderDropped(lv_obj_t* id);
bool sliderDropped(char* name);

參數

• [in] id
  Object ID.
• [in] name
  Object Name.

Return

Bool. Determine Slider is dropped.

範例

#include "myhmi.h"

void setup() {
  Hmi.begin();
}

void loop() {
  BEGIN_HMI_EVENT_PROC
  {
    if (Hmi.sliderDropped(p1sl1))
    {
      // do something.
    }
  }
  END_HMI_EVENT_PROC
}

Please see the 86HMI Editor使用手冊 for more instructions on 86HMI widgets and API usage.
