ICOP’s QEC-RXXCXXL is a high-performance EtherCAT SubDevice offering up to 32 isolated digital input or output channels, designed for seamless integration with EtherCAT MDevice systems. Certified by the EtherCAT Conformance Test Tool (ET9400), it ensures reliable communication, precise timing, and broad compatibility with various industrial environments.
Advanced, Flexible, and Reliable Digital I/O

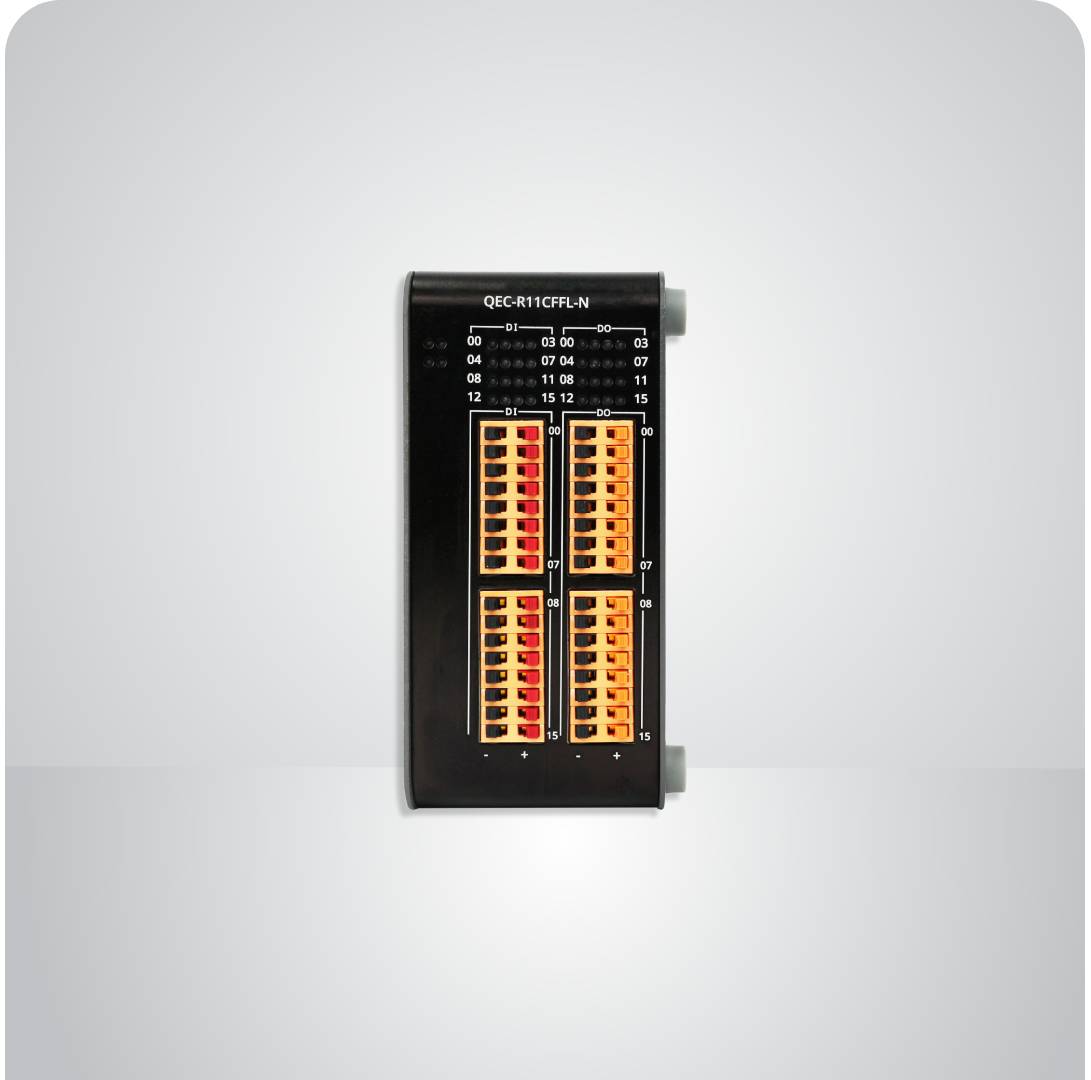

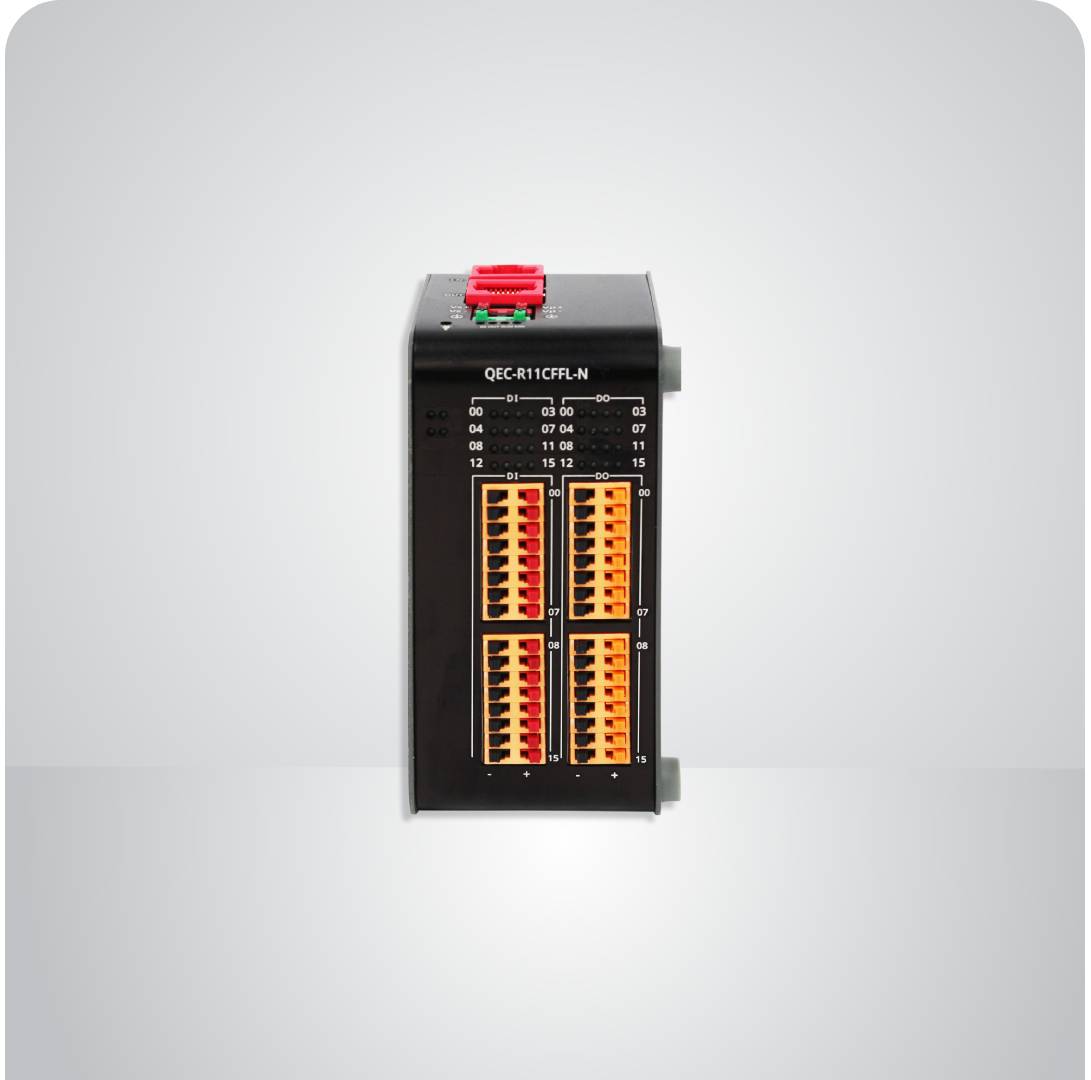

The QEC-RXXCXXL supports flexible configurations of 8, 16, or 32 isolated digital I/O channels, enabling tailored deployment in diverse industrial applications.
- Digital Input: Compatible with both NPN and PNP sink types; supports operating frequencies up to 3000 Hz.
- Digital Output: Rated for up to 60VDC, with a typical load current of 500mA and peak up to 1000mA.
- Isolation Protection: 2500 Vrms for inputs and 1500 Vrms for outputs, ensuring electrical safety and durability.
Precise Synchronization via Distributed Clock
With Distributed Clock (DC) support, the QEC-RXXCXXL achieves sub-millisecond synchronization across EtherCAT networks—crucial for time-sensitive automation processes. The minimum cycle time of 1 ms makes it suitable for high-speed, high-precision control systems.
Compact, Durable, and Easy to Install

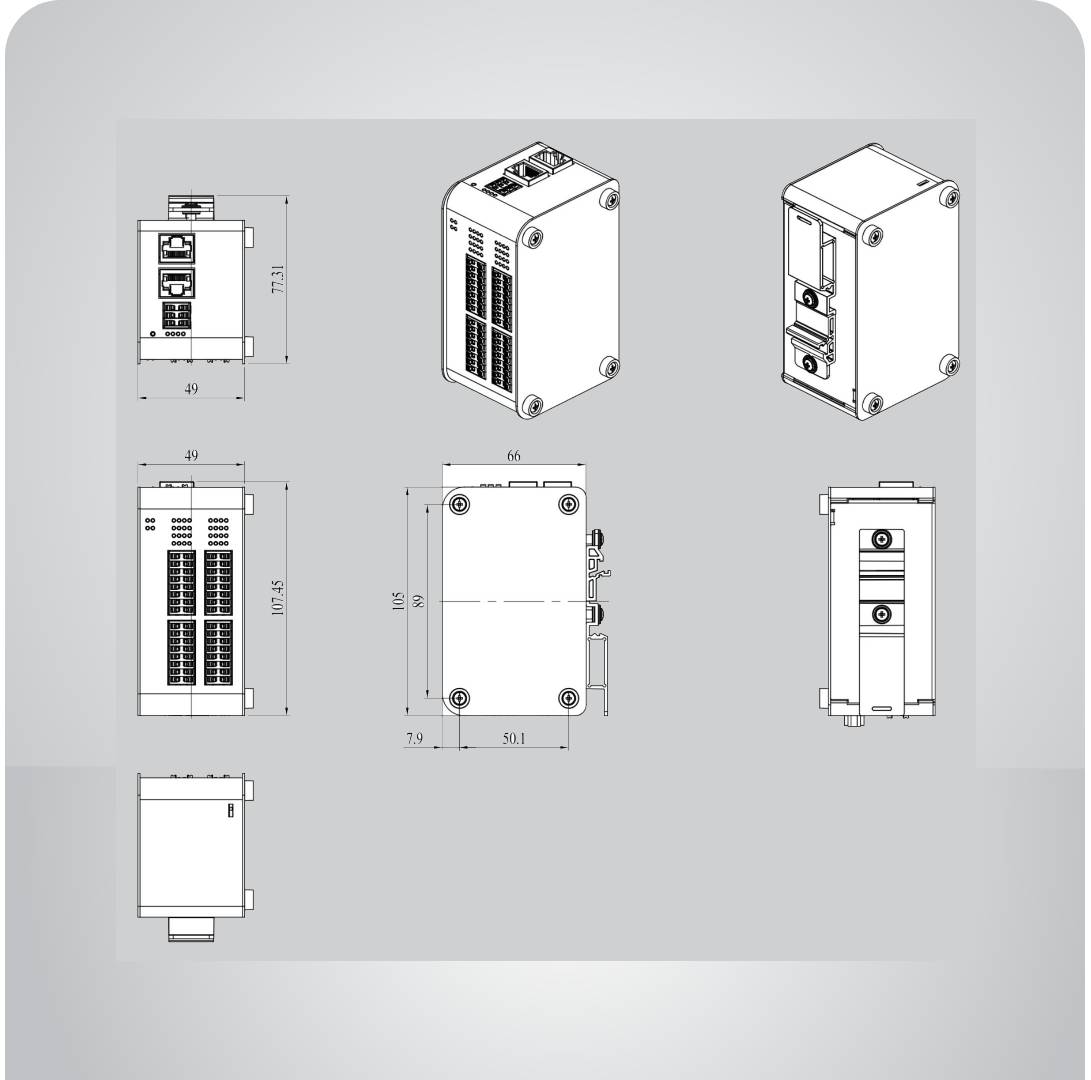

Housed in a compact and rugged form factor (107.45 x 49 x 77.31 mm, 370g), the QEC-RXXCXXL features:
- DIN-rail mount for easy integration
- Euroblock terminals for secure, efficient wiring
- Wide operating temperature: -20°C to +70°C (optional -40°C to +85°C)
- Built-in diagnostics for temperature, voltage, current, and power-on timing
Whether for precise digital input acquisition, robust industrial output control, or synchronized operations, the QEC-RXXCXXL series offers a scalable, reliable solution for modern automation systems.
Contact ICOP today to learn how this advanced EtherCAT I/O module can elevate your control architecture.
