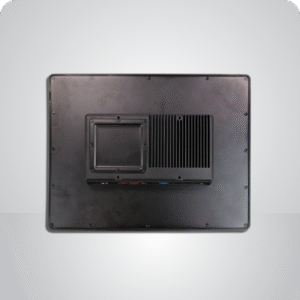

ICOP’s QEC-PPC-M series (QEC-PPC-M-090T / QEC-PPC-M-150T) are EtherCAT MDevice with Panel and Touch LCD system, designed for real-time, reliable, and synchronized industrial HMI control. Each model integrates a high-resolution touch-enabled TFT LCD (9″or 15″), providing a rugged case and powerful control core within a compact system.
86Duino IDEによる効率的な開発
The development environment utilizes 86Duino IDE, an industrial Arduino-like platform that supports EtherCAT API, graphical programming tools, and high-level C/C++ programming, enabling rapid development while reducing hiring challenges and time to market. Beyond EtherCAT, the QEC-PPC-M series also supports Modbus TCP, Ethernet TCP/IP, and CAN bus, providing a complete industrial automation solution.
モーションおよびI/O制御のためのリアルタイム精度
The QEC MDevice supports essential EtherCAT functions including PDO, CoE, FoE, Distributed Clocks (DC), and etc., ensuring flexible integration with third-party EtherCAT devices such as servo drives and digital I/O. With a minimum cycle time of 125 μs and jitter of less than 1 μs (via the 86Duino IDE), it is ideal for highly synchronized motion and I/O control applications.
更なる情報： EtherCAT MDevice Benchmark
Robust Storage, Reliable I/O, and Versatile Connectivity with Embedded form factor
Each model features a built-in 2GB SLC eMMC, ensuring stable OS operation and offering ample storage for executables, HMI graphics, and application data. Files can be deployed via the 86Duino IDE. The IDE also integrates the LVGL graphics library, allowing developers to create modern and interactive touchscreen HMIs directly on the QEC device.
In addition to EtherCAT control, QEC-PPC-M models monitor system temperature, voltage, and current—providing useful data for carbon footprint analysis and system lifespan estimation. The Open-frame design (dimensions vary by model) supports flexible integration and customization for industrial use. Standard operating temperature is 0°C +60°C, with and extened option from -20°C to +70°C.
Each QEC-PPC-M unit features dual EtherCAT ports (for redundancy), one Giga LAN port, three USB ports, a USB debug port (for upload/debug), and HD Audio, which all can accessibly control via off-the-shelf Library.
