The QEC-RXXMV3S series is a high-performance EtherCAT pulse-output motion module designed for traditional automation systems that require precise, synchronized multi-axis control. It supports 3-axis independent control with pulse output up to 100 Kpps per channel, and achieves high-speed synchronization with a minimum communication cycle of 250 μs. Built for seamless integration, it is compatible with CiA 402 and G-code drive profiles, and supports multiple synchronization modes, including DC, SM2, and FreeRun.

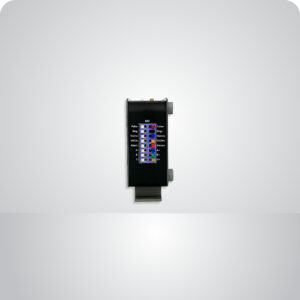

To cover a wide range of motion tasks, the QEC-RXXMV3S supports Profile Position (PP), Cyclic Synchronous Position (CSP), and Cyclic Synchronous Velocity (CSV), along with Homing (Methods 19, 20, 21, 22, and 37). Each axis provides complete committed I/O signals—including Pulse±, Sign±, Home±, SON±, Alarm±, and A/B/Z encoder interfaces—making it ideal for precise motion control, machine management, and retrofit automation projects. The series has been verified by conformance testing tools, ensuring reliable EtherCAT communication and robust operation in industrial environments.
さらに差動信号によるエンコーダ・インターフェース（A、B、Z）は、正確な位置フィードバック、優れたノイズ耐性、強化されたモーションコントロールを実現し、QEC-RXXMV3Sを産業用アプリケーション向けの高信頼性、高精度なソリューションとしています。

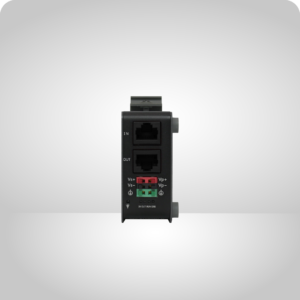

The QEC-RXXMV3S series is compact at 107.45 x 77.39 x 34 mm, making it very convenient for system installation via Din-Rail mounting. It operates within a temperature range of -20°C to +70°C and is equipped with two network ports for EtherCAT network redundancy, enhancing system reliability and stability.
